Customized Zipper Filament Monofilament Extrusion Solution
Complete monofilament extrusion solutions for zipper filament manufacturers. From material preparation and precision extrusion to cooling, drawing, heat setting and automatic winding, NLY provides process-oriented equipment engineering for stable and continuous zipper filament production.
Designed Around Your Filament Requirements
Zipper filament quality is determined not only by the extruder, but by the coordination of extrusion, cooling, drawing, heat setting and winding. NLY designs the complete monofilament production line according to the target material, filament specification, production capacity and final zipper application.
- Stable polymer melting and extrusion
- Precision melt filtration and metering
- Controlled cooling and filament forming
- Multi-stage drawing for mechanical performance
- Heat setting for dimensional stability
- Continuous automatic winding
Zipper Filament Production Line
A complete equipment system designed to convert polymer raw materials into consistent zipper monofilaments through controlled extrusion, cooling and drawing processes.

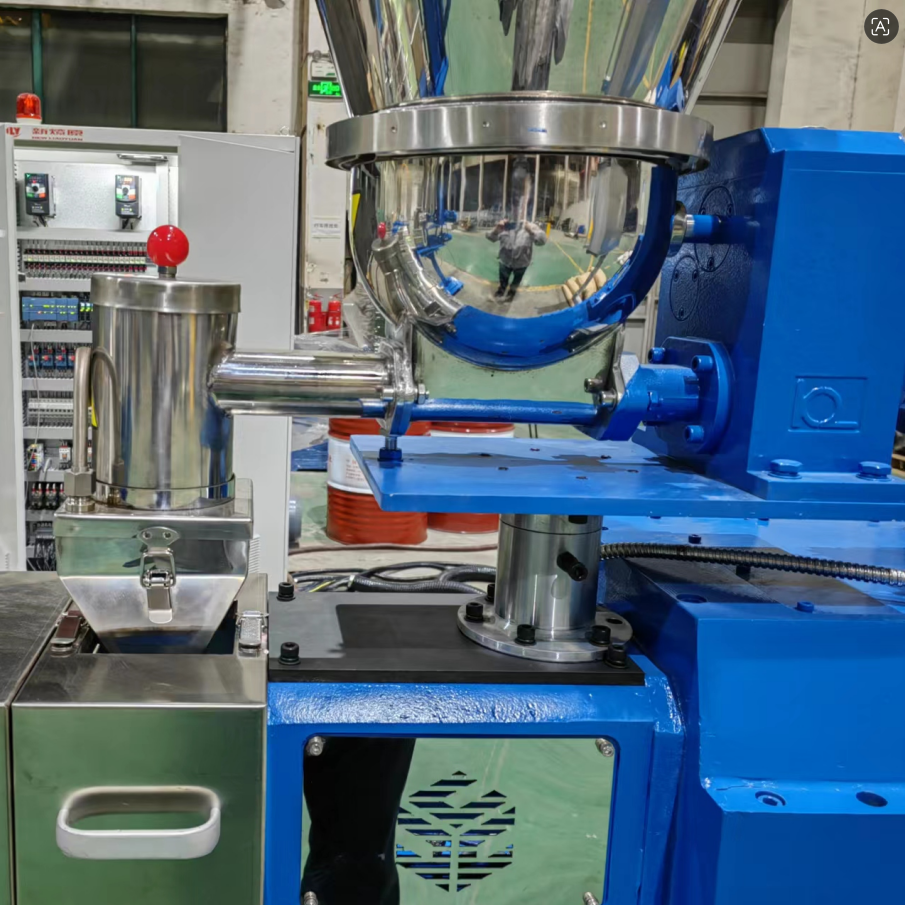

Precision Extrusion System
Controlled polymer melting, melt filtration and precision extrusion support consistent zipper filament formation.

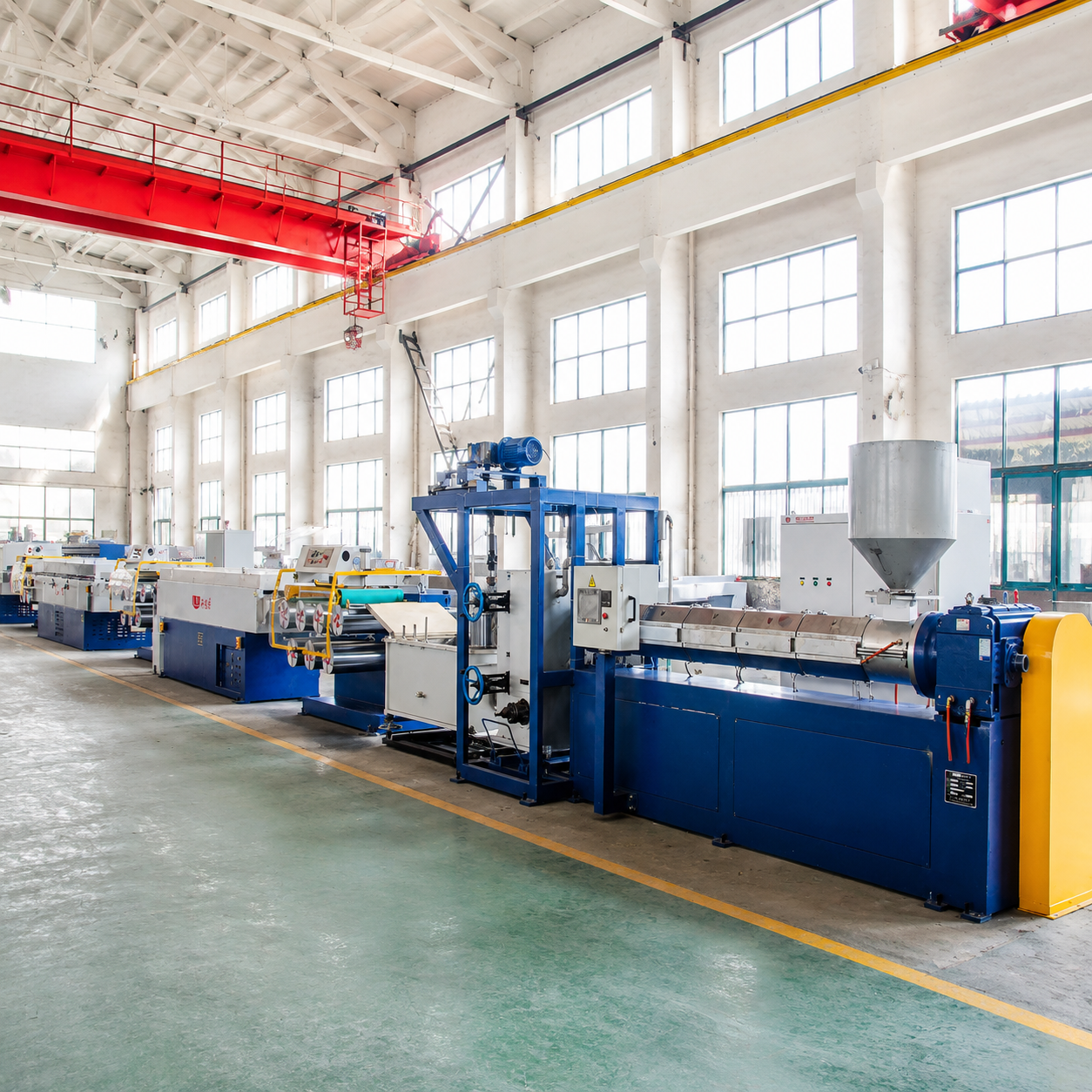

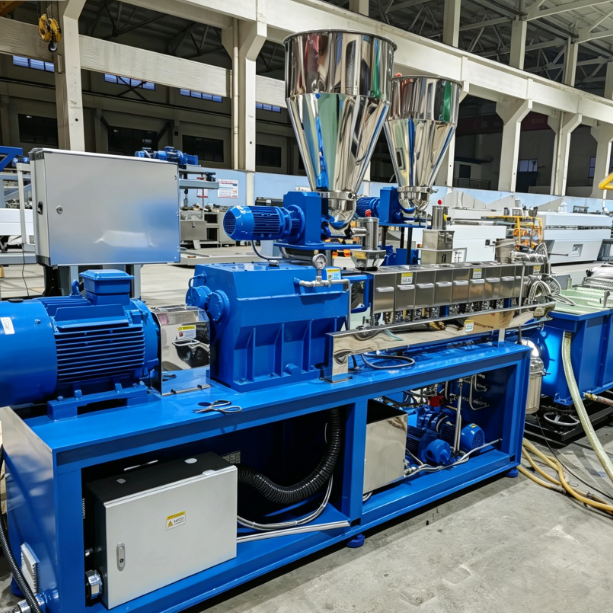

Complete Extrusion Line
Integrated production line covering extrusion, cooling, drawing, heat setting and automatic winding.

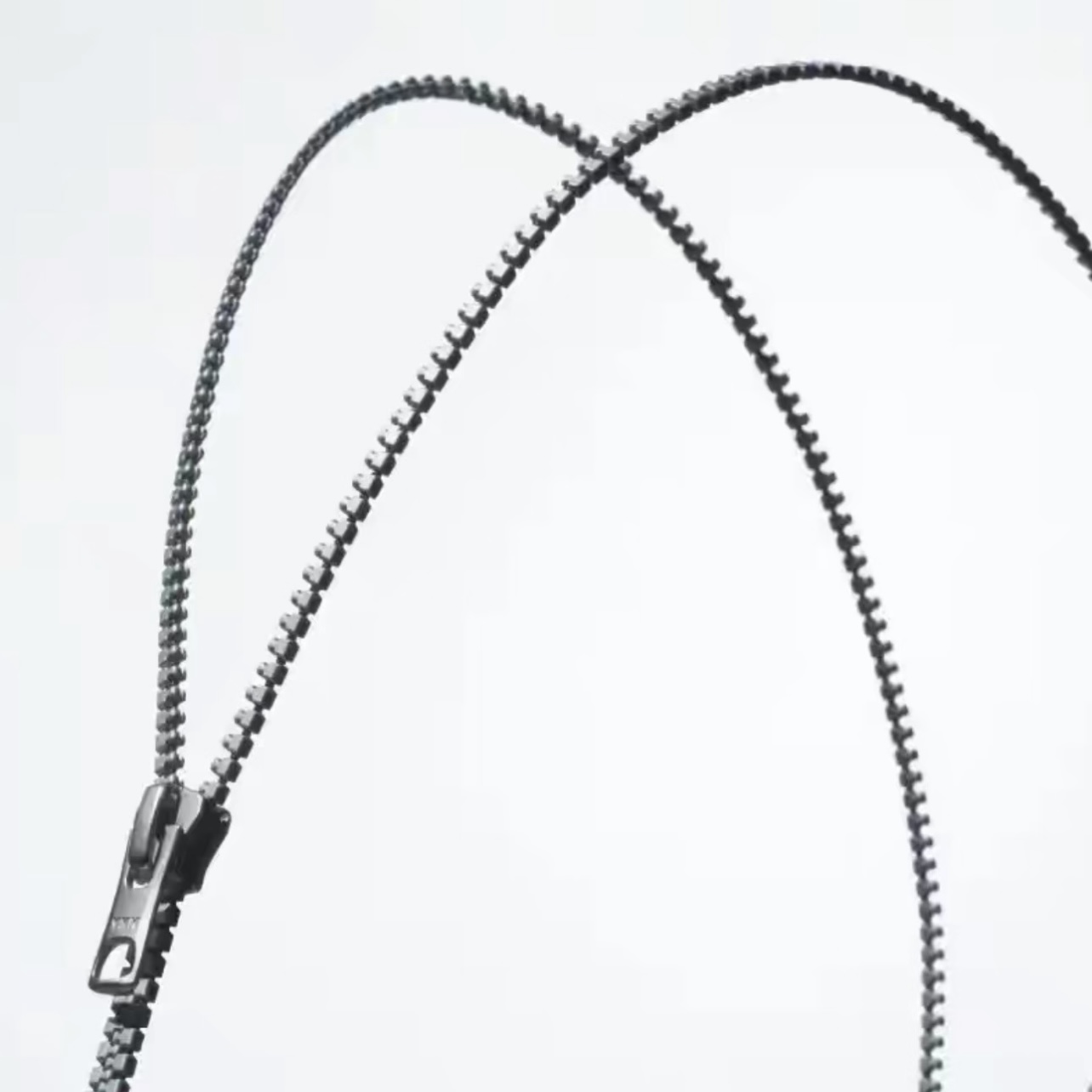

Finished Zipper Filament
Stable monofilament geometry, surface quality and mechanical performance for zipper manufacturing applications.
From Polymer To Finished Zipper Filament
Each production stage contributes to filament diameter consistency, mechanical properties and long-term production stability.
Material Preparation
Raw material drying and controlled feeding.
Precision Extrusion
Polymer melting and continuous filament forming.
Melt Filtration
Filtration helps remove impurities from the polymer melt.
Cooling & Drawing
Controlled cooling and stretching shape the filament properties.
Heat Setting
Thermal treatment improves dimensional stability.
Winding
Automatic winding for continuous production.
Core Equipment Configuration
The final configuration is engineered according to raw material, filament diameter, production capacity and zipper application requirements.

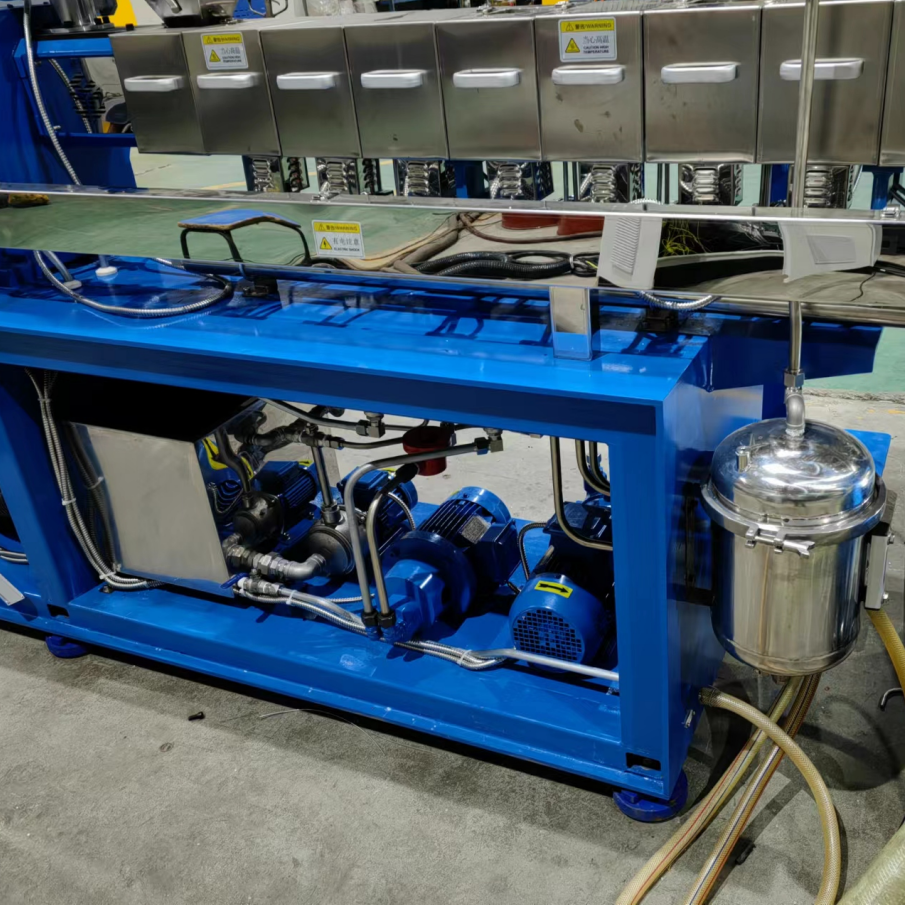

Extruder
Provides stable polymer melting, mixing and conveying for continuous zipper filament extrusion.

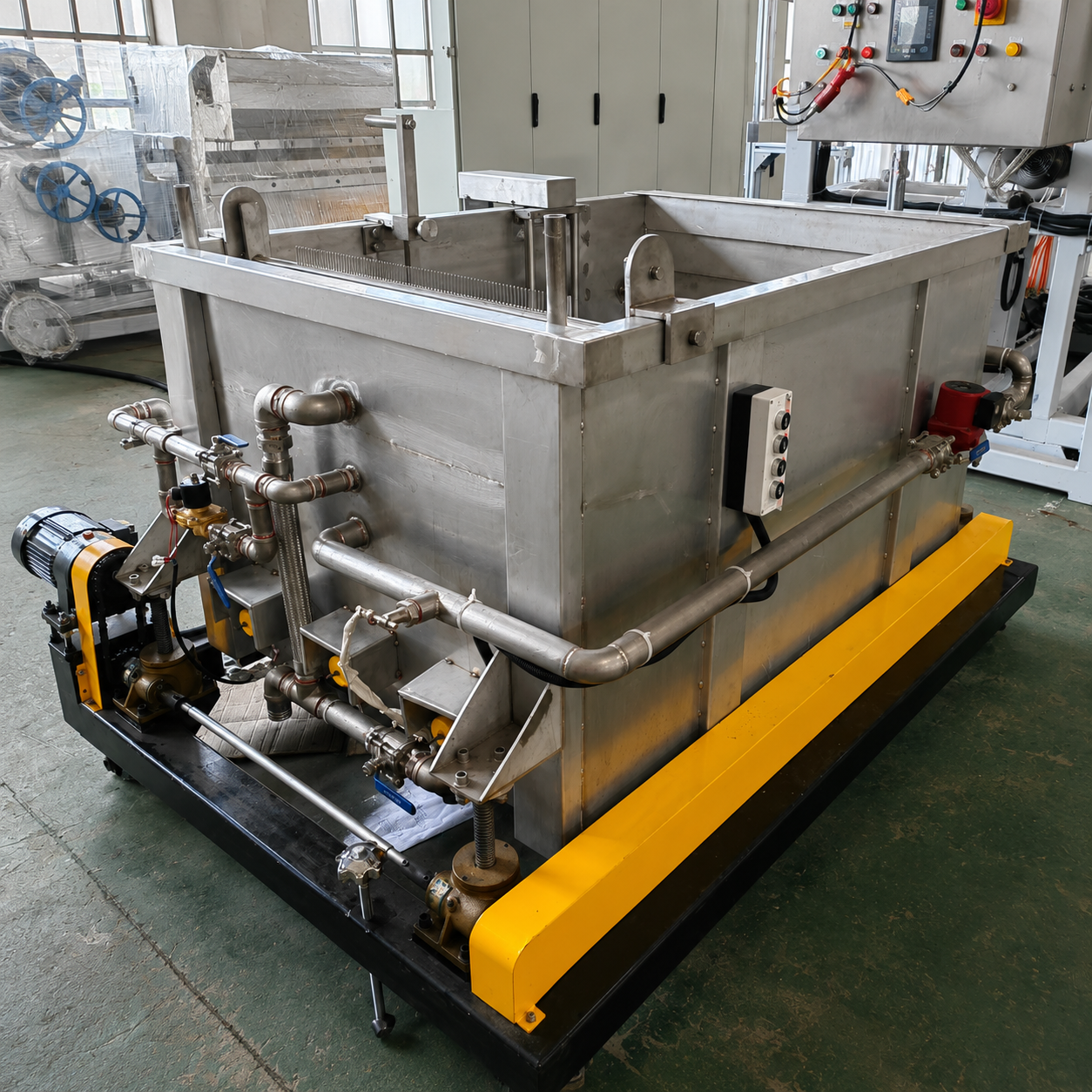

Cold Water Tank
Controlled cooling conditions help stabilize the filament after extrusion and support consistent forming.

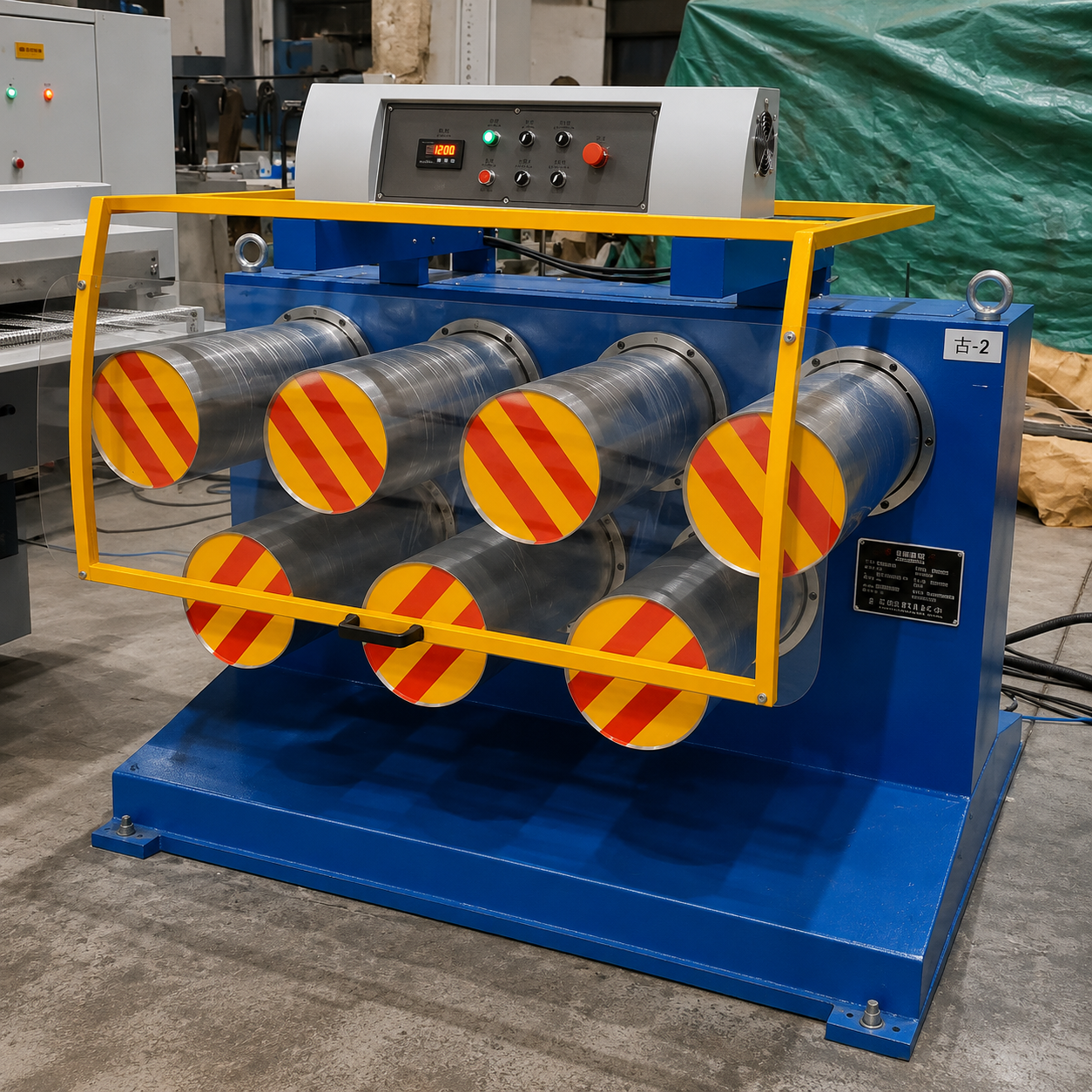

Roller System
Multi-stage drawing controls filament orientation, diameter and mechanical properties.

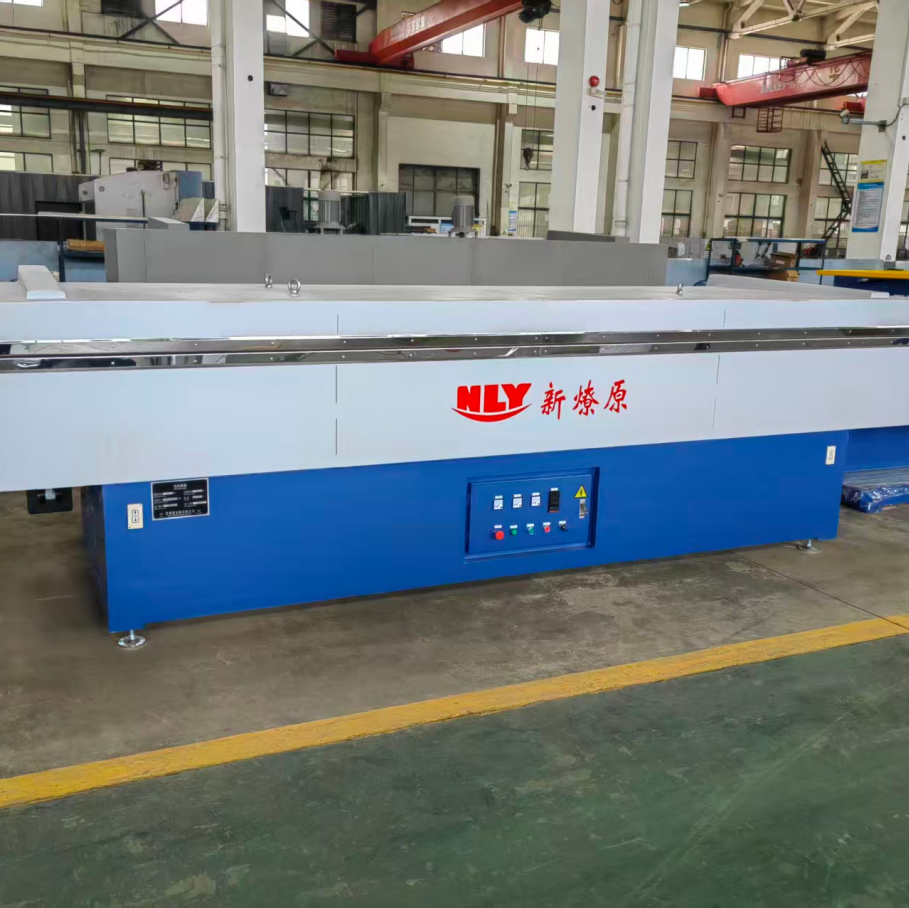

Hot Air Oven
Controlled heat setting helps stabilize filament dimensions and final performance.

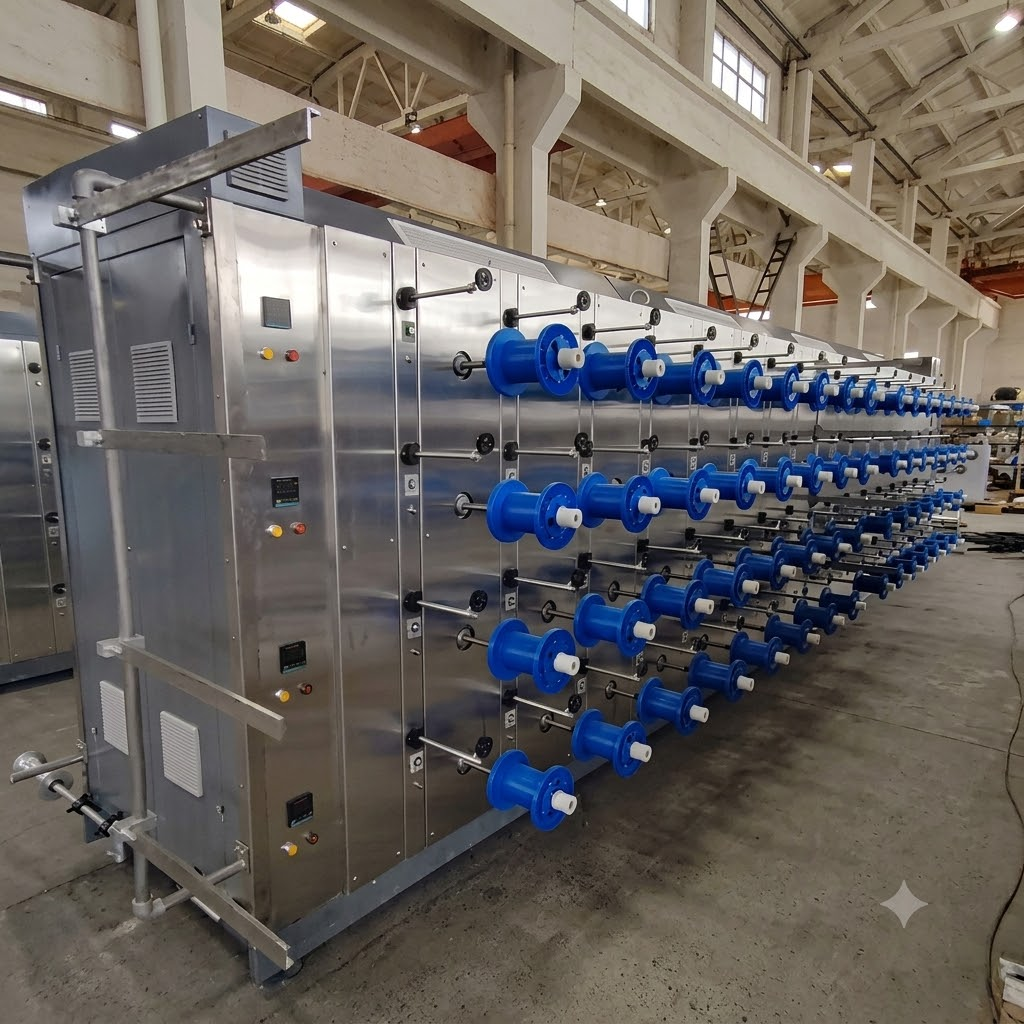

Automatic Winder
Stable winding tension provides organized filament packages for downstream zipper production.

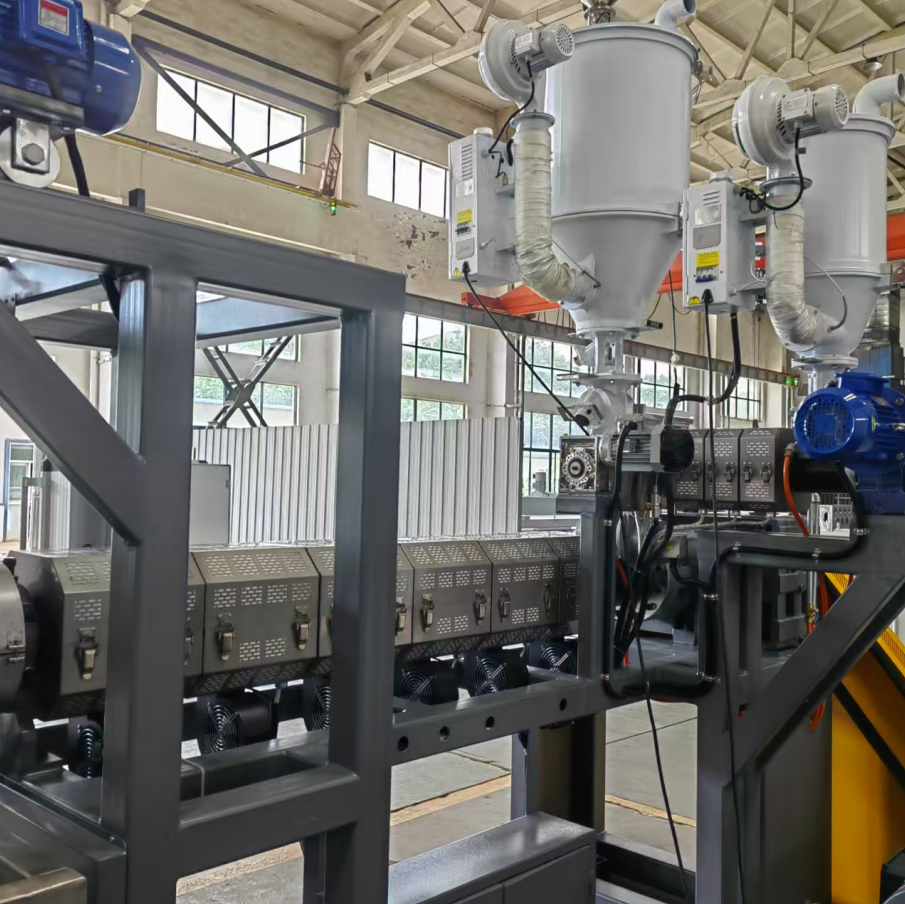

Material Conveying
Stable material feeding and conveying support continuous production and consistent processing.
Built For Stable Industrial Production
NLY focuses on process-oriented monofilament extrusion solutions rather than supplying isolated machines.
Consistent Filament Diameter
Extrusion, cooling and drawing conditions are coordinated to support stable filament dimensions.
Precision Extrusion
Melt filtration and metering systems are configured according to material and filament requirements.
Customized Line Design
Equipment configuration is developed according to material, filament specification and production capacity.
Factory Trial Operation
Production lines undergo sectional testing and synchronized full-line trial operation before shipment.

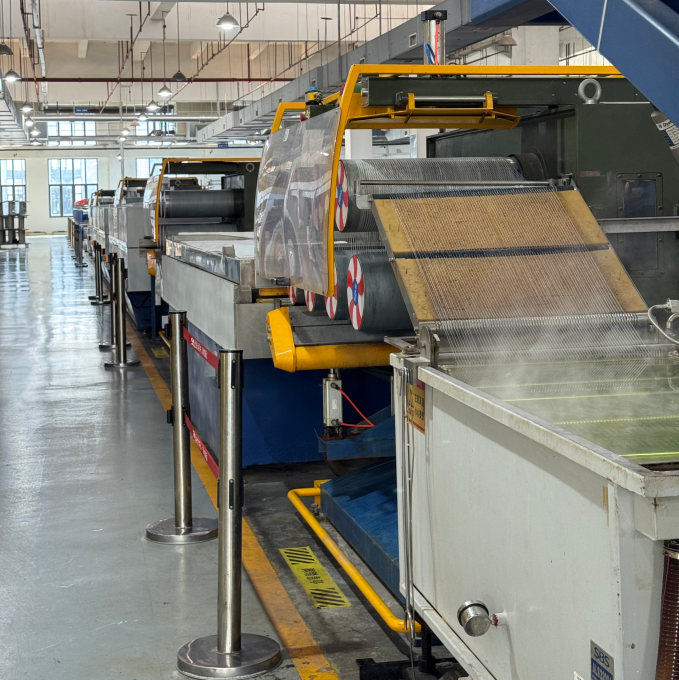

Zipper Filament Extrusion Machine In Operation
Watch the zipper filament monofilament extrusion line in actual factory operation, including extrusion, cooling, drawing, heat setting and automatic winding.
Zipper Filament Extrusion Machine Running
Actual factory production of zipper filament monofilament extrusion, drawing and winding.
Material Selection For Zipper Filaments
Material selection depends on the required filament strength, flexibility, dimensional stability, processing characteristics and final zipper application.
PET Monofilament
PET is suitable for zipper filament applications requiring stable dimensions, good mechanical performance and consistent extrusion characteristics.
Recycled PET
Recycled PET bottle flakes can be processed with suitable drying, feeding and enhanced melt filtration configurations.
Nylon / PA Filament
Nylon-based filament solutions can be configured according to the required flexibility, toughness and final zipper application.
Typical Zipper Filament Production Specification
Final equipment specifications are confirmed after reviewing the customer's material, filament dimensions, output and application requirements.
| Specification | Customization Range / Project Input |
|---|---|
| Raw Material | PET / Recycled PET / Nylon / PA / Other Suitable Materials |
| Filament Application | Zipper Monofilament / Zipper Tape Filament / Customized Zipper Applications |
| Filament Diameter | Determined according to final zipper specification |
| Filament Shape | Round / Profile / Customized Geometry |
| Production Capacity | Engineered according to target output and filament specification |
| Melt Filtration | Standard or enhanced filtration according to raw material quality |
| Drawing System | Multi-stage roller configuration customized according to process requirements |
| Heat Treatment | Hot air heat-setting system according to material and filament performance |
| Winding | Automatic winding configuration according to downstream production requirements |
| Line Design | Customized equipment layout and factory planning |
How NLY Develops Your Zipper Filament Production Line
The solution starts from your finished filament requirements rather than a fixed machine model.
Information Required For Customization
- Raw material type and formulation
- Target filament diameter
- Filament shape and structure
- Final zipper application
- Required production capacity
- Winding package requirements
- Factory space and production layout
Project Implementation
- Technical requirement confirmation
- Production line and factory layout design
- Customized equipment manufacturing
- Sectional equipment testing
- Full-line synchronized trial operation
- Shipment and installation support
- Commissioning and after-sales technical support

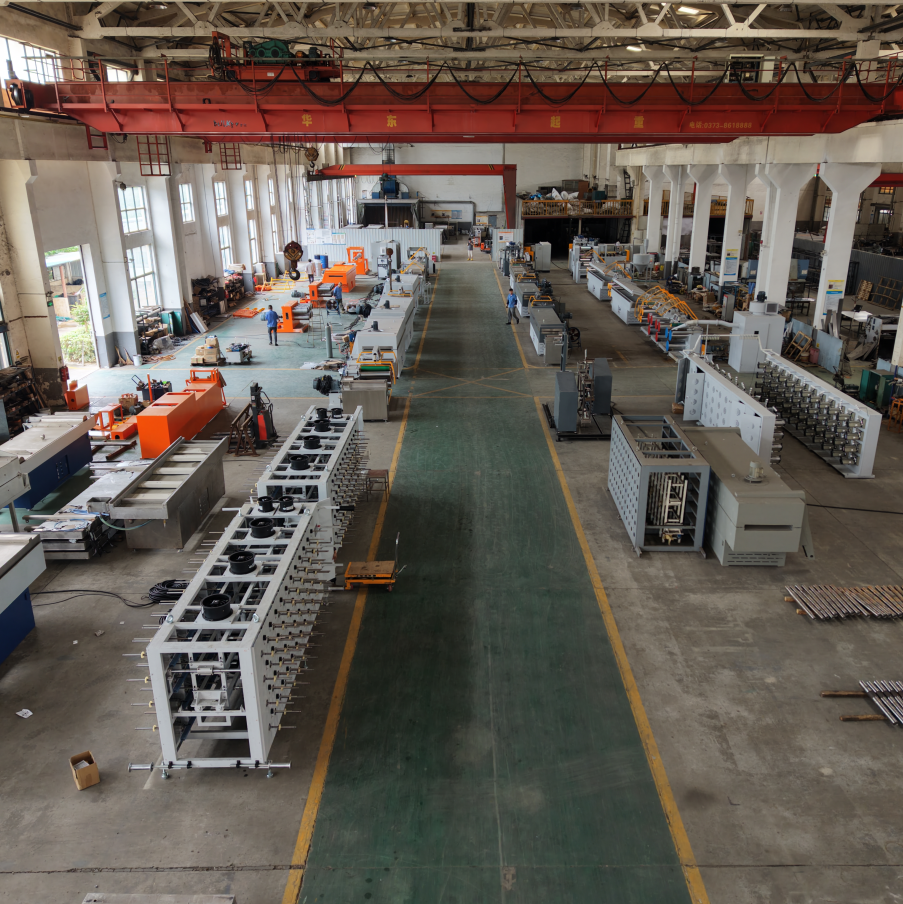

A Manufacturing Partner For Monofilament Production
NLY Machinery has focused on monofilament extrusion machinery manufacturing since 1989. The company provides customized equipment solutions covering line design, manufacturing, testing, commissioning and technical support.
Our engineering approach focuses on the complete production process, helping customers develop stable and practical monofilament production lines according to material, filament specification and output requirements.
Zipper Filament Extrusion Solution FAQ
What materials can be used for zipper monofilament production?
Can the machine process recycled PET bottle flakes?
Can NLY customize the zipper filament production line?
Can the complete production line be tested before shipment?
How long does it take to manufacture a zipper filament extrusion line?
Does NLY provide installation and after-sales support?
Build Your Zipper Filament Production Line With NLY
Tell us your raw material, filament diameter, target output and zipper application. Our engineering team can develop a customized monofilament extrusion solution around your production requirements.
