1.Extruder: 1 set
(1) Screw diameter: 80mm, Rotation speed of screw: 0～72 rpm.
(2) L:D: 33:1, Material of screw: 38CrMoALA; The screw is suitable for HDPE chips.
(3) Automatic screen changer:1 set
(4) Pressure feedback system which can adjust the screw speed automatically
(5) Material of barrel heater: Far infarad
(6) Electric heating round spinneret: 1 set
(7) Ceramic heating rings for spinneret with SS insulating layer make the heat evenly.
(8) Spinneret components: 2 sets with disassembly support for spinneret discreteness
(9) Metering pump, rotation speed: 0-40 rotation. Frequency control of metering pump speed, driving power: 4KW.

2.Cold water tank: 1 set
(1) The tank is made by SS 304.
(2) Material of distributing roller: stainless steel

3. First 7-unit roller system:1 set
(1)Seven viable diameter rollers, there are five rollers are covered with rubber to resist skidding.
(2) Steel structure box with accurately grind gear makes the rollers run smoothly.
(3) Built-out oil lubrication system which makes the gears runs steady.

4. Hot water tank:1 set
(1) Heating power: 27kw, two zones heater.
(2) Double pressure rollers with twin cylinder opening system which is controlled by electromagnetic valve.
(3) Water suction.

5. Second 7-unit roller system:1 set
(1) Seven variable diameter rollers with hard chrome plating.
(2) Steel structure box with accurately grind gear makes the rollers run smoothly.
(3) Built-in oil lubrication system which makes the gears runs steady.

6. Single-layers hot oven tank: 2 set
(1) Fan power: 2.2KW×2 sets
(2) Heating power: 23KW
(3) Oven length: 5000 mm
(4) Special design of hot air channel which make the temperature evenly.

7. Third 7-unit roller system:1 set
(1) Seven variable diameter rollers with hard chrome plating.
(2) Steel structure box with accurately grind gear makes the rollers run smoothly.
(3) Built-in oil lubrication system which makes the gears runs steady.

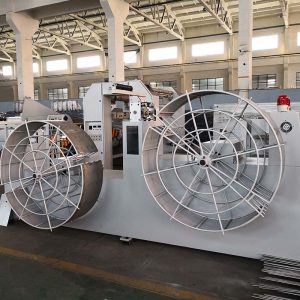

8. 4 sets, 8 spindles winding machine:1 set
1) The beam size is according to customer’s requirements.
2) Motor: 150kg torque motor

Total installation power: 180KW

Overall size: 40000×1800×2500mm

Total weight: 20T
