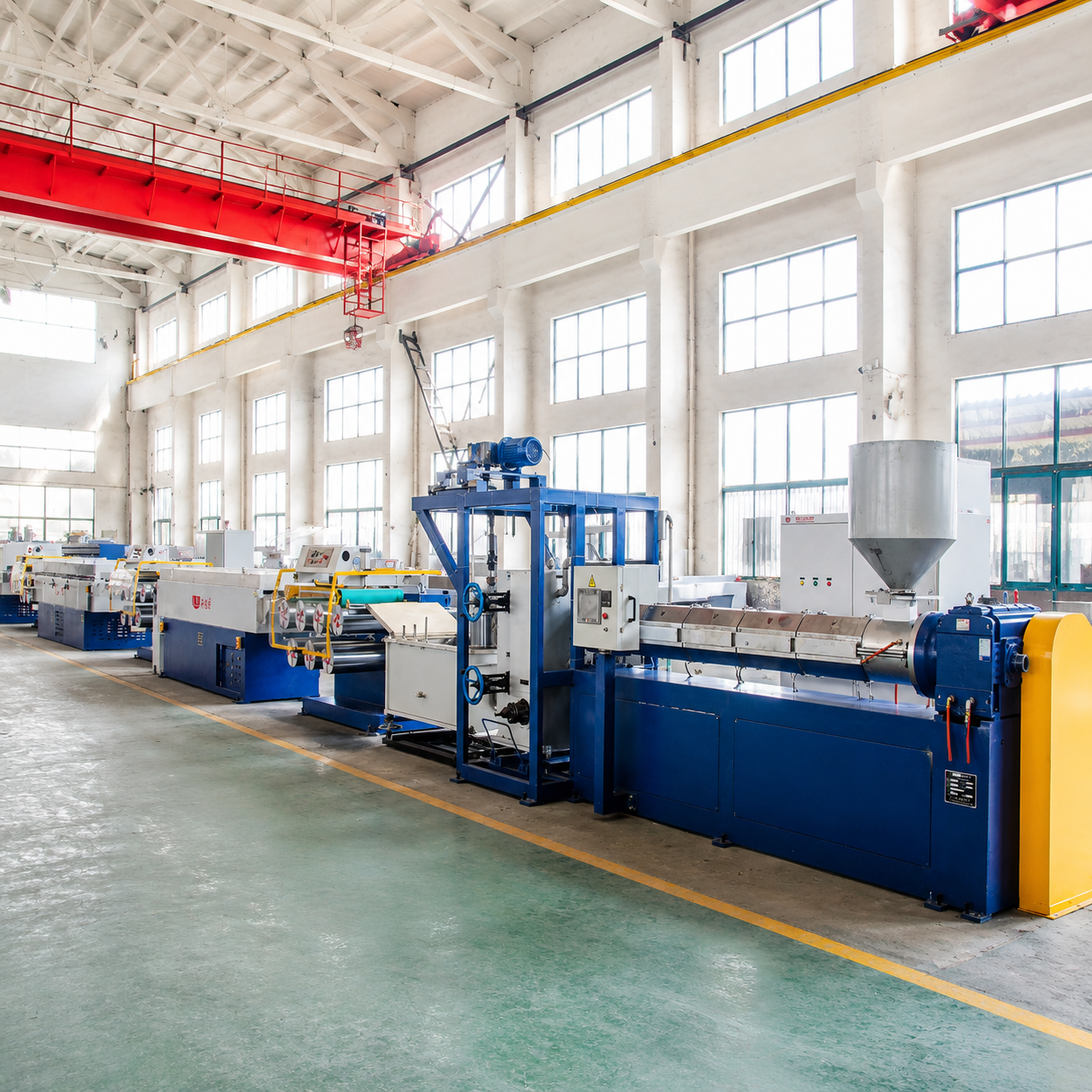

1. Extruder: 1 set
(1) Screw diameter: 80mm, Rotation speed of screw: 0～80 rpm.
(2) L:D: 30:1, Material of screw: 38CrMoALA ,
(3) RKC pressure automatic feedback system which can adjust the screw speed automatically.
(4) Material of barrel heater: Cast aluminium with stainless steel insulation layer.
(5) Metering pump, rotation speed: 0-45 rpm.
(6) Round spinneret: 1 set.
(7) Two color dosing unit: 1 set

2. Cold water tank: 1 set
(1) The tank is made by SS 304.

3. First 7-unit roller system:1 set
(1) Seven variable diameter rollers made by steel pipe with hard chrome plating.
(2) Steel box with accurately grind gear makes the rollers run smoothly.
(3) Equip 1 pressing roller.

4. Overflow type hot water tank: 1 set
(1) Tank size: 4000mm
(2) Electric heating pipe is in the tank.
(3) Water removal device: 2 sets with suction.

5. Second 7-unit roller system:1 set
(1) Seven variable diameter rollers made by steel pipe with hard chrome plating.
(2) Steel structure box with accurately grind gear makes the rollers run smoothly.
(3) Equip 1 pressing roller.

6. First Double-layer hot oven tank:1 set
(1) Oven length: 4000 mm
(2) Heating power 23kw×2

7. Third 7-unit roller system:1 set
(1) Seven variable diameter rollers made by steel pipe with hard chrome plating.
(2) Steel structure box with accurately grind gear makes the rollers run smoothly.
(3) Equip 1 pressing roller.

8. Second Double-layer hot oven tank:1 set
(1) Oven length: 5000 mm
(2) Heating power 23kw×2
(3) Special design of hot air channel.

9. Fourth 7-unit roller system:1 set
(1) Seven variable diameter rollers made by steel pipe with hard chrome plating.
(2) Steel structure box with accurately grind gear makes the rollers run smoothly.
(3) Equip 1 pressing roller.

10. Lubricating system: 1 set
(1) Frequency control of speed

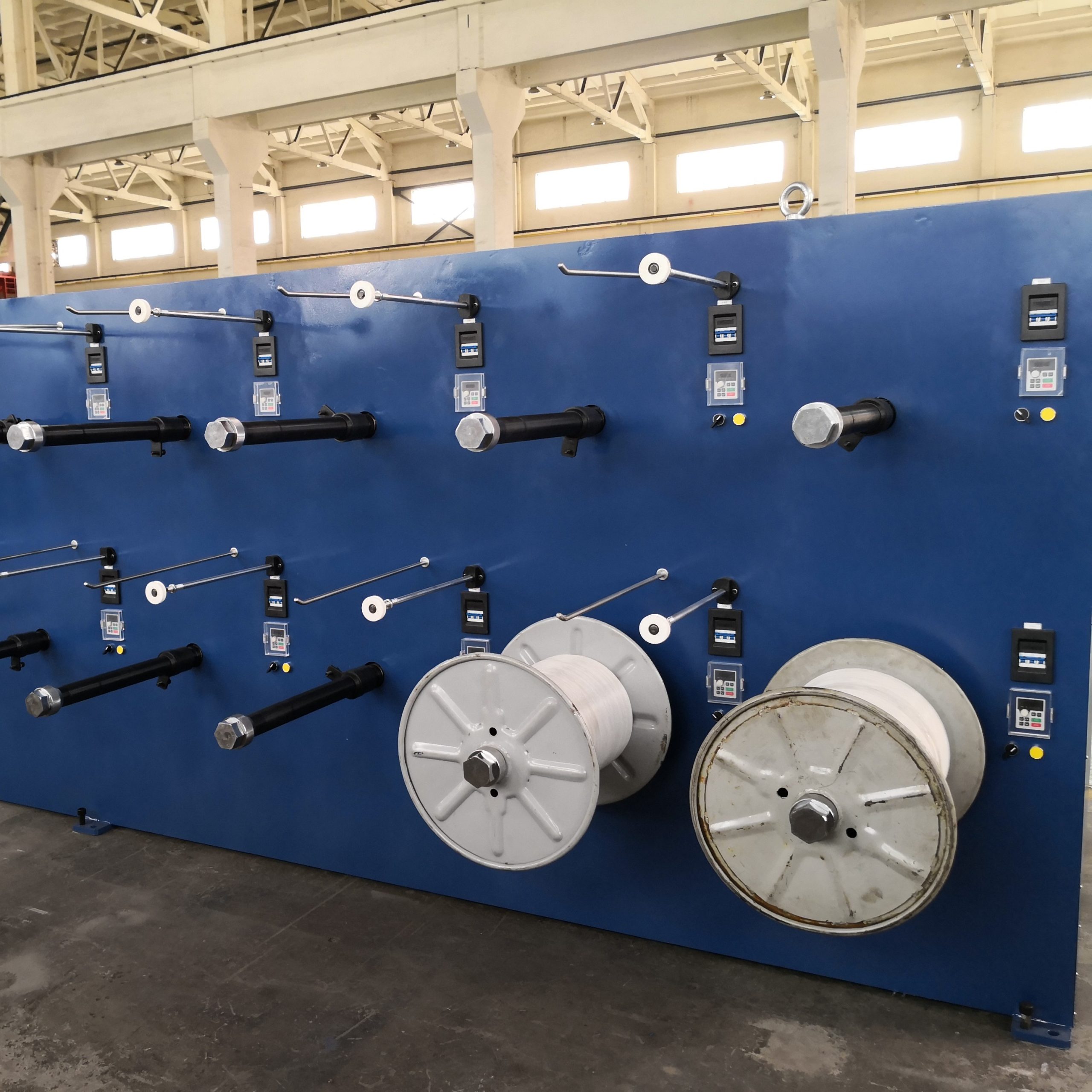

11. 24 spindles winding machine
(1) Spool and bobbin are as sample.
(2) Winding motor: 15KG

12. Waster yarn collectors: 1 set
