1. Extruder: 1 set
(1) Screw dia.: 70mm;
(2) L:D: 30:1; Material of screw: 38CrMoALA; The screw is for 100%  PET
(3) Hard tooth reducer
(4) Pressure automatic feedback system to control screw speed.
(5) Melt filter: customized
(6) Pressure sensor and gauges:
(7) Melt pump:1 set
(8) Power of melt pump: 3.7kw
(9) Heater: Electric .
(10) Spinneret device: 1 Set

2. Cold water tank: 1 set
(1) The tank is made by Stainless Steel.
(2) Use big window.
(3) Heating power: 18kw

3. First 7-unit roller system:1 set
(1) Roller size: φ270×750×7, All steel roller.
(2) Power of motor: 7.5KW
(3) Steel cabinet with accurately grind gear.
(4) Driving motor and reducer.
(5) The center height is 1100mm.

4. Hot water Tank:1 set
(1) Size (L×W×H) : 4000×800×1100 mm
(2) Heating power: 35KW; Electrical heating.
(3) Material is stainless steel 304.
(4) Equip one moisture absorption device: 4KW

5. Second 7-unit roller system:1 set
(1) Roller size: φ270×750×7,All steel roller.
(2) Power of motor: 15KW
(3) Steel cabinet with accurately grind gear makes the roller run smoothly.
(4) Equip one pressing rollers
(5) The center height is 1100mm

6. First double-layers hot oven tank: 1 set
(1) Fan power: 2.2KW×2 sets.
(2) Heating power: 23KW
(3) Oven length: 4300 mm

7. Third 7-unit roller system:1 set
(1) Roller size: φ270×750×7, All steel roller.
(2) Power of motor: 15KW
(3) Steel cabinet with accurately grind gear makes the roller run smoothly.
(4) Driving motor and reducer.
(5) The center height is 1100mm

8. Second double-layers hot oven tank: 1 set
(1) Fan power: 2.2KW×2 sets,
(2) Heating power: 23KW
(3) Oven length: 5000 mm

9. Fourth 7-unit roller system:1 set
(1) Roller size: φ270×750×7,All steel roller.
(2) Power of motor: 7.5KW
(3) Steel cabinet with accurately grind gear makes the roller run smoothly.
(4) Driving motor and reducer is from Zhejiang Tongli Reducer.
(5) The center height is 1100mm

10. Oil system: 1 set

11. Waster yarn collectors system: 1 set

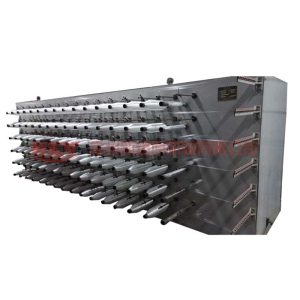

12. 300 spindles winding machine
(1) The frame transmission is frequency control, driving motor: 2.2kw
(2) F7 spools, size as per client’s request.
(3) Each spindle has on/off switch.
