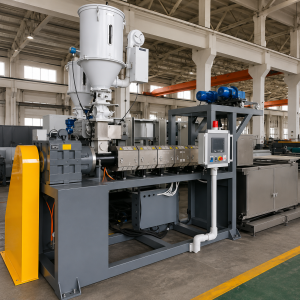

1. Extruder: 1 set
(1) Screw diameter: 100mm, there is thermometer hole in the barrel which has cooling fans.
(2) L:D: 33:1, Material of screw: Bimetallic
(3) Rotation speed of screw: 1～72 rpm.
(4) Motor power:55kw

2. Cold water tank: 1 set
(1) The tank is made by SS 304 with one light and safety shield.
(2) Pushed and pulled in side way, the power driven lifting.

3. First 5-unit roller system:1 set
(1) Motor power: 11kw
(2) The center height is 1200mm

4. Hot water tank:1 set
(1) Overall size: 4000×1300×1100 mm
(2) Heating method: electric heating
(3) Inside of the tank is made by SS 304

5. Second 5-unit roller system:1 set
(1) 4 heating roller and working width 1300mm
(2) Standard heater has self-protective and alarm function.
Temperature control range: 70-120 degree.
(3) Driving motor and reducer: 17.5kw

7. Double-layer hot oven tank: 1 set
(1) Working area: 5000mm L×1350mm W.
Heating power: 35KW×2, the circulating fan: 4Kw×4.

8. Third 5-unit roller system:1 set
(1) Two cooling roller:φ318×1300×3,standard rotary joint.
(2) Driving motor and reducer: 7.5kw
(3) Working hight:1200mm

9. 80 spindles winding machine:1 set
(1) Constant tension magnetic disk deviation transmission.
(2) Winding motor: 250w

10. Waster yarn collectors system:1 set
(1) Including pipes and fan, fan power: 7.5kw

11. The installation power: 350kw;

12. Overall size: 38000×2600×2000mm;

13. Total weight: 22T
