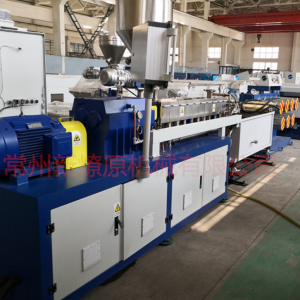

1. Extruder: 1 set
(1) Screw dia: 85mm; Rotation speed: 0～80rpm,
(2) L:D: 30:1; Material of screw: 38CrMoALA;
(3) Pressure feedback system can adjust the screw speed automatically.
(4) Melt filter: Melt filter changer with candles
(5) Spinneret device: 1 set
(6) Metering pump: 1 set
(7) Heater: Electric heating ring to make sure the temperature evenly.

2. Cold water tank: 1 set
(1) The tank is made by Stainless Steel 304.

3. First 7-unit roller system:1 set
(1) Seven pieces variable diameter roller with hard chrome plating.
(2) Steel cabinet with accurately grind gear makes the roller run smoothly.

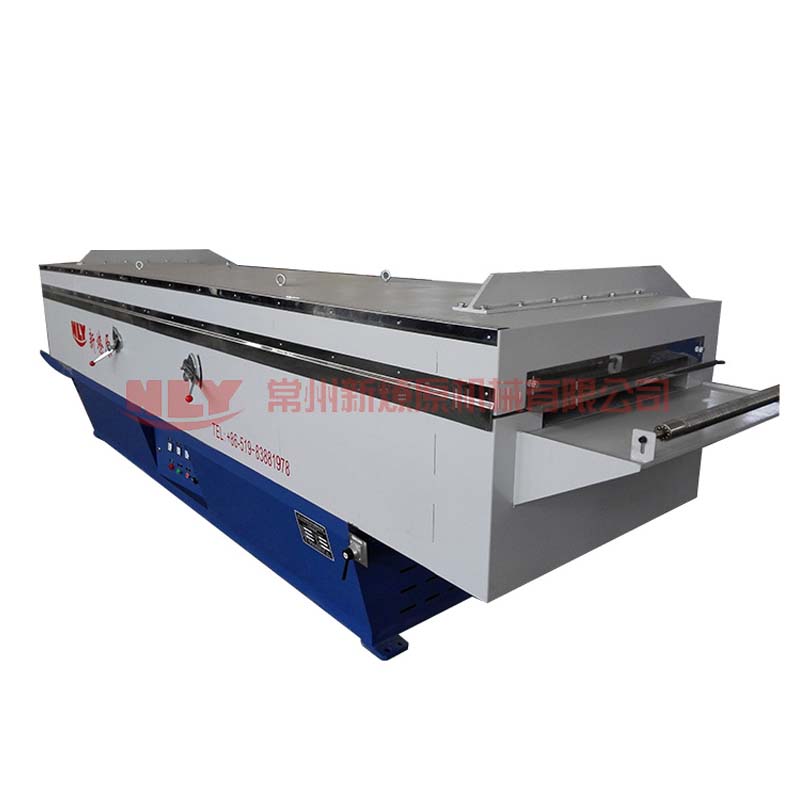

4. Hot water Tank:1 set
(1) Heating power: 70KW; Electrical heating, copper heating pipe
(2) Material is stainless steel 304 with heat preservation.

5. Second 7-unit roller system:1 set
(1) Seven pieces variable diameter roller with hard chrome plating.
(2) Steel cabinet with accurately grind gear makes the roller run smoothly.

6. Winding machine:1 set
(1) Winding bobbin as per clinet’s reqeust.
(2) Tesnion control by inverter.
