1. Extruder: 1 set
(1) Screw diameter: 70mm, Screw speed: 0～80 rpm.
(2) L:D: 30:1, Screw material: 38CrMoALA.
(3) Pressure automatic feedback system.
(4) Melt pump 30cc 1 set.
(6) Round spinneret: 1 set.

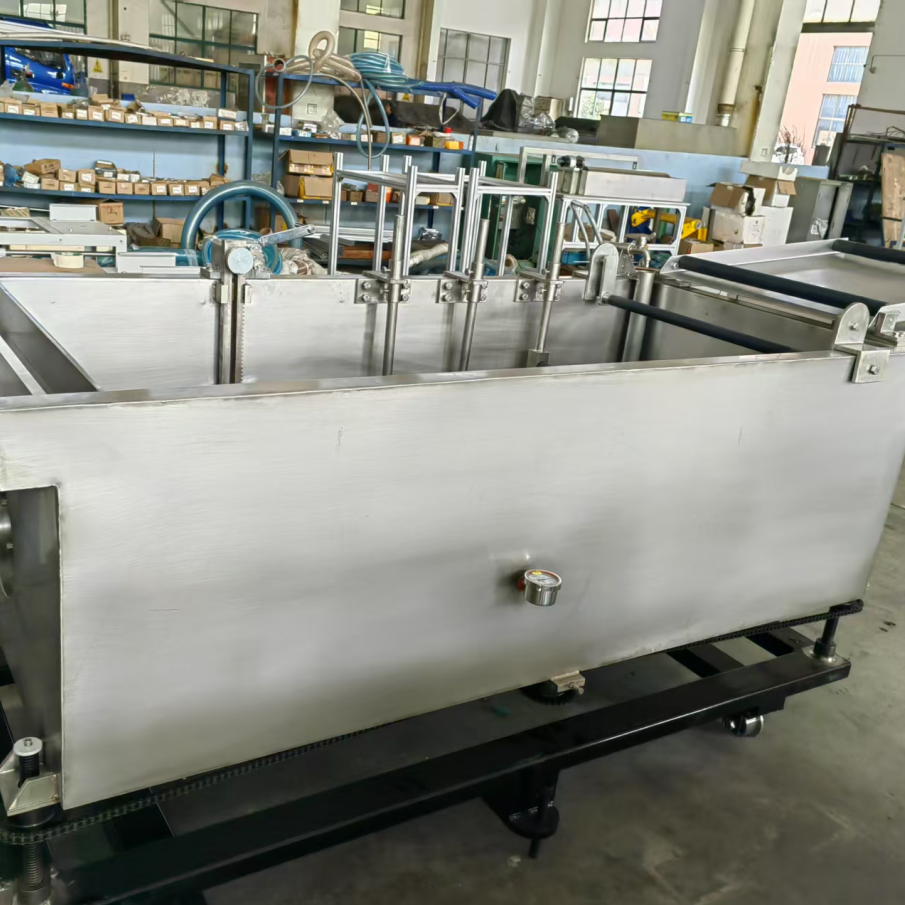

2. Cold water tank: 1 set

3. First 7-unit roller system:1 set
(1) Seven variable diameter rollers.
(2) Reducer is from Zhejiang Tongli.
(3) Working height: 1200mm
(4) Bearing: Timkin

4. Hot water tank: 1 set
(1) Tank size: 4000mm
(2) Water removal device 1 set

5. Second 7-unit roller system:1 set
(1) Seven variable diameter rollers made by steel pipe with hard chrome plating.
(2) Reducer is from Zhejiang Tongli.
(3) Working height: 1200mm
(4) Bearing: Timkin

6. First Double-layer hot oven tank:1 set
(1) Oven length: 4000 mm
(2) Heating power 23kw×2

7. Third 7-unit roller system:1 set
(1) Seven variable diameter rollers made by steel pipe with hard chrome plating.
(2) Reducer is from Zhejiang Tongli.
(3) Working height: 1200mm
(4) Bearing: Timkin

8. Second Double-layer hot oven tank:1 set
(1) Oven length: 5000 mm
(2) Heating power 23kw×2

9. Fourth 7-unit roller system:1 set
(1) Seven variable diameter rollers made by steel pipe with hard chrome plating.
(2) Reducer is from Zhejiang Tongli.
(3) Working height: 1200mm
(4) Bearing: Timkin

11. 252 spindles winding machine
