1. Extruder: 1 set
(1) Screw diameter: 90mm,Screw speed: 0～72rpm.
(2) L:D: 33:1, Screw material: 38CrMoALA ,
(3) Pressure feedback system can adjust the screw speed automatically.
(4) Far infraed barrel heater
(5) Melt pump, rotation speed: 0-45 rotation.
(6) Spinneret plate: 2 pieces

2. Cold water tank: 1 set
(1) The tank is made by SS 304.
(2) Pushed and pulled in side way, the automatic lifting of tank.

3. Dryer system:1 set

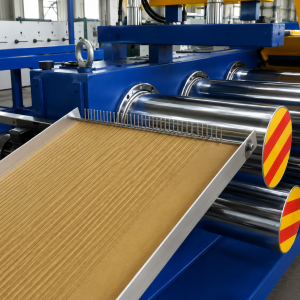

4. First 7-unit roller system:1 set
(1) Five variable diameter rollers and two steel rollers.
(2) Steel box with accurately grind gear makes the rollers run smoothly.
(3) Working height: 1100mm

5. Double-layer hot oven tank:1 set
(1) Heating power: 23KW
(2) Oven length: 5000 mm

6. Second 7-unit roller system:1 set
(1) Seven variable diameter rollers with hard chrome plating.
(2) Steel box with accurately grind gear makes the rollers run smoothly.
(3) Working height: 1100mm

7. Waster yarn collector: 1 set

8. Winding machine:as client’s requirements.
