1. Extruder: 1 set
(1) Screw diameter: 90mm, Rotation speed of screw: 0～80 rpm.
(2) L:D: 33:1, Material of screw: 38CrMoALA ,
(3) Filter: Manual/Auto filter changer.
(4) Pressure automatic feedback system.
(5) Material of barrel heater: Cast aluminums.
(6) Metering pump, rotation speed: 0-45 rotation.
(7) Electrical heating round spinneret: 1 set

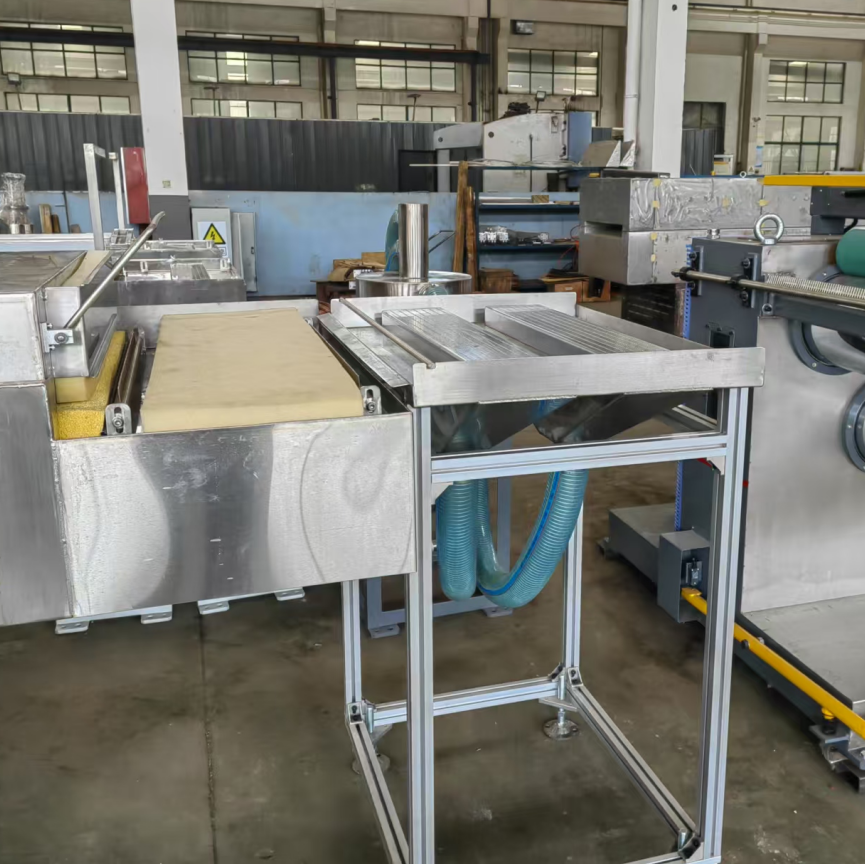

2. Cold water tank: 1 set
(1) The tank is made by SS 304.
(2) Pushed and pulled in side way

3. Drying system:1 set

4. First 7-unit roller system:1 set
(1) Five variable diameter rollers and two steel rollers.
(2) Max drafting force: 1000 daN.
(3) Steel box with accurately grind gear.

5. Double- layer hot oven tank: 1 set
(1) Heating power: 23KW
(2) Oven length: 5000 mm

6. Second 7-unit roller system:1 set
(1) Seven variable diameter rollers with hard chrome plating.
(2) Steel box with accurately grind gear.

7. Windingmachine
(1) Bobbin size according to clients
